Eclatés de véhicule - PIAGGIO FLY 125 4T-3V ie E3 DT 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

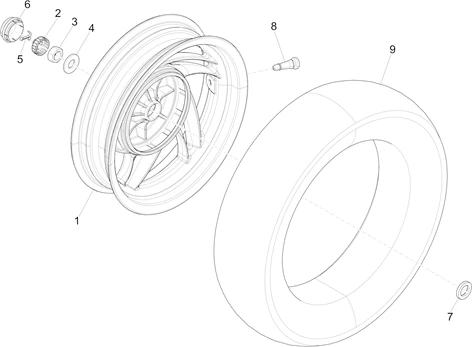

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_04.12.PNG)
1 |
667195 - ROUE ARR. Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
2 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
3 |
ECROU (M16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -563728 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/7/2/img/68472.jpg)
4 |
RONDELLE PLATE (16.2X34.5X3) ORIGINE PIAGGIO COMMUN A LA GAMME -674425 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
5 |
GOUPILLE SECURITE ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -012789 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/0/img/65830.jpg)
6 |
BOUCHON DE ROUE ARRIERE ORIGINE PIAGGIO APRILIA 50-125 SR MOTARD/GILERA DNA/PIAGGIO 50-125 FLY, 125 VESPA PX -197983 Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
BOUCHON DE ROUE ARRIERE ORIGINE PIAGGIO APRILIA 50-125 SR MOTARD/GILERA DNA/PIAGGIO 50-125 FLY, 125 VESPA PX -197983 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/4/img/67474.jpg)
7 |
ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -601205 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
8 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -270991 Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
598277 - PNEU 120/70-12 SAVA MC20 Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
664014 - PNEU AV 120/70 - 12" CHENG SHIN Plus d'informationsQuantité requise : 1 |
|||||||||
|
9 |
|
|||||||||
