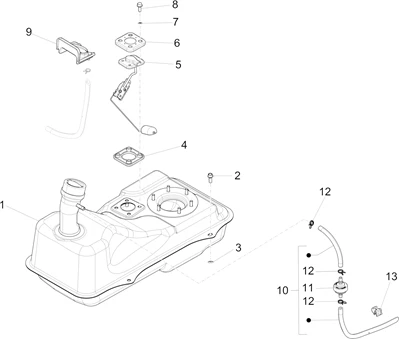

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_02.47.PNG)
1 |
RESERVOIR ESSENCE ORIGINE PIAGGIO 125 FLY 2012>2015 -781203- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
2 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
3 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 4 |
||||||
|
4 |
781091 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
642887 - JAUGE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
781090 - FLASQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
7 |
VIS BRIDE TH (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -830061 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/2/5/img/92125.jpg)
8 |
CAPTEUR DE RESERVE DE CARBURANT ORIGINE PIAGGIO 50-125 FLY 2012>2015 -680014 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
781122 - CUVETTE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
7811255 - TUYAU DE PURGE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
576748 - VOLET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
12 |
COLLIER DE SERRAGE DURITE (10X13) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002908 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
13 |
CLIPS ATTACHE FAISCEAU ORIGINE PIAGGIO COMMUN A LA GAMME -CM013203 Plus d'informationsQuantité requise : 2 |
