Eclatés de véhicule - PIAGGIO FLY 125 4T-3V ie E3 DT 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

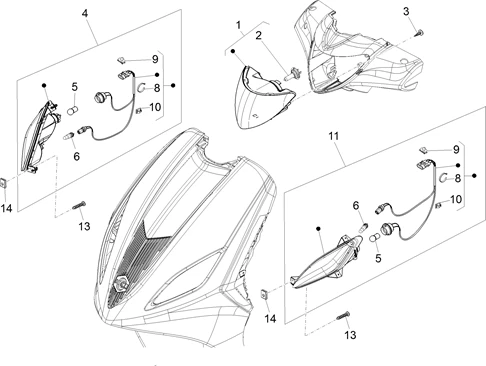

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/0/6/img/86406.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 50-125 FLY 2013> -642568- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
2 |
AMPOULE/LAMPE 12V 35/35W HS1 ORIGINE PIAGGIO COMMUN A LA GAMME -231215 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
3 |
VIS TOLE (L35MM) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -296458 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/3/img/86393.jpg)
4 |
CLIGNOTANT AVANT DROIT ORIGINE PIAGGIO 50-125 FLY 2012> -642531- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -584332 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
6 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
8 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/2/img/67302.jpg)
9 |
RESSORT DE CONNECTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -584520 Plus d'informationsQuantité requise : 2 |
||||||
10 |
640879 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/9/4/img/86394.jpg)
11 |
CLIGNOTANT AVANT GAUCHE ORIGINE PIAGGIO 50-125 FLY 2012> -642532 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
13 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178601 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
14 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 6 |
