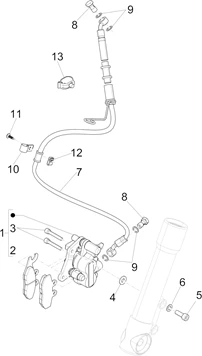

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_05.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/0/img/72980.jpg)
1 |
ETRIER DE FREIN SCOOT ORIGINE PIAGGIO 50-125 FLY 2005>, LIBERTY 2009>, VESPA PRIMAVERA 2013>, VESPA SPRIN 2014>, 125 X-EVO, VESPA GTS/GILERA 50 RUNNER, 125 NEXUS, SR (HENG-TONG SLX 12') -CM0683016 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/9/img/68179.jpg)
2 |
PLAQUETTE DE FREIN ORIGINE PIAGGIO 125 BEVERLY 2010> AV, FLY 2013> AV, LIBERTY 2013> AV, 300 BEVERLY 2010> AV, 300 VESPA GTS 2012> AV, 250 VESPA GTS 2005> AV, 500 X10 2012> AV, 350 BEVERLY 2013> AV (PAIRE) -651253 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/6/img/68396.jpg)
3 |
PIVOT/TIGE ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -666139 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
4 |
RONDELLE PLATE (8.4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -003038 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/9/img/67369.jpg)
5 |
VIS BTR (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -598919 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/9/6/img/90296.jpg)
7 |
DURITE/FLEXIBLE/TUYAU DE FREIN AVANT ORIGINE PIAGGIO 50-125 FLY 2012>2015 -667902 Plus d'informationsQuantité requise : 1 |
||||||
8 |
781282 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
9 |
JOINT CUIVRE (10X14X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927 Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
675510 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
11 |
VIS TORX (4,2X13) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178603 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
12 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
CM006904 - OLLIER Plus d'informationsQuantité requise : 1 |
