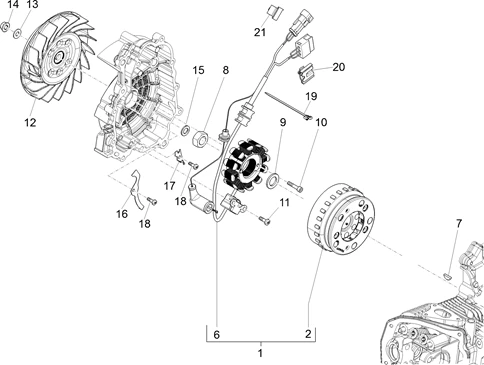

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_01.21.PNG)
1 |
B018107 - VOLANT MAGNETIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/9/img/94809.jpg)
2 |
ROTOR COMPLET AVEC ROUE LIBRE ORIGINE PIAGGIO 125 FLY, LIBERTY, VESPA GTS, VESPA LX, PRIMAVERA, SPRINT, VESPA-S (MOTEUR 3 SOUPAPES ET IGET) 2020< -B018108 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/0/3/img/94703.jpg)
6 |
STATOR ORIGINE PIAGGIO 125 FLY, LIBERTY, LX, S 2012>2015 -B016543 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
7 |
CLAVETTE ALLUMAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -000097 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
ECROU ALLUMAGE (M16X1.25) ORIGINE PIAGGIO 125 FLY, LIBERTY, VESPA LX, PRIMAVERA, SPRINT -B015996- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B018464 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
10 |
VIS CRUCIFORME (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003109 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/0/img/75350.jpg)
12 |
TURBINE/VENTILATEUR ALLUMAGE ORIGINE PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013> -1A001379 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/6/img/70536.jpg)
14 |
874557 - ECROU BRIDE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
B015807 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
B018105 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
B018106 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
VIS CRUCIFORME (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003109 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
641764 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
641769 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/2/img/67302.jpg)
21 |
RESSORT DE CONNECTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -584520 Plus d'informationsQuantité requise : 1 |
