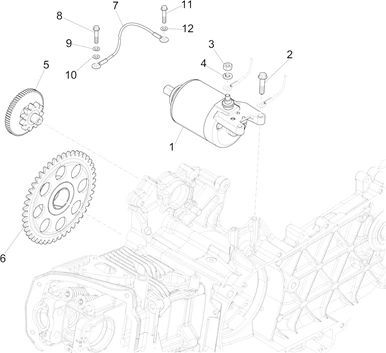

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_01.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/3/8/img/156038.jpg)
1 |
DEMARREUR ORIGINE PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX -1A011611R Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
DEMARREUR ORIGINE PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX -1A011611R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
3 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -020106 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 1 |
||||||
5 |
880317 - RENVOI Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
B014165 - CORONA DE DEPART Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
581310 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
8 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
10 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
11 |
VIS BRIDE TH (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -969296 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
12 |
RONDELLE ELASTIQUE (6.4X12X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -006976 Plus d'informationsQuantité requise : 1 |
