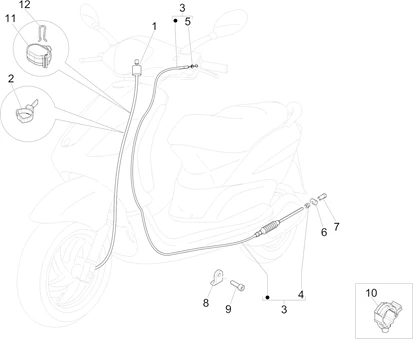

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/9/3/img/90293.jpg)
1 |
CABLE/COMMANDE/TRANSMISSION DE COMPTEUR ORIGINE PIAGGIO 50-125 FLY 2012>2017 -667878 Plus d'informationsQuantité requise : 1 |
||||||
2 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 3.00X200MM ORIGINE PIAGGIO COMMUN A LA GAMME -709519 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/8/4/7/img/95847.jpg)
3 |
CABLE/COMMANDE/TRANSMISSION DE FREIN ARRIERE ORIGINE PIAGGIO 125 FLY 2013>2015 -CM086701 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/8/img/67368.jpg)
4 |
ECROU DE REGLAGE DE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -598918 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
5 |
DOUILLE/EMBOUT DE CABLE DE FREIN ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -266040 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
6 |
PIVOT TRANSMISSION FREIN ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -179640 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
7 |
ECROU REGLAGE FREIN ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -270310 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
5A000035 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
9 |
VIS BTR (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -709674 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
CM006911 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
CM006904 - OLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/0/9/img/90809.jpg)
12 |
CLIPS RESSORT DE DIRECTION ORIGINE PIAGGIO 50-125 COMMUN A LA GAMME -672491 Plus d'informationsQuantité requise : 1 |
