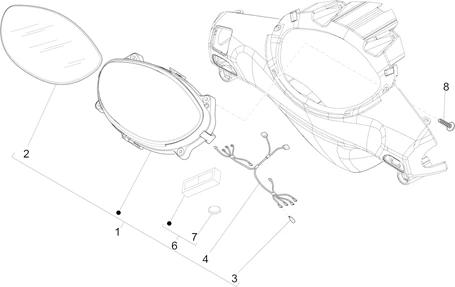

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_03.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/2/9/img/92129.jpg)
1 |
COMPTEUR ORIGINE PIAGGIO 125 FLY 3V 2012>2015 -680035 Plus d'informationsQuantité requise : 1 |
||||||
2 |
643421 - VERRE COMPTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
643269 - AMPOULE 12V Plus d'informationsQuantité requise : 8 |
||||||
|
4 |
680153 - CORDON DE LA LAMPE ASSY Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/4/7/img/92147.jpg)
6 |
HORLOGE ORIGINE PIAGGIO 50-125 FLY 2012>2015 -680132 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
7 |
PILE HORLOGE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998>2004/GILERA 50 STALKER -498342 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/1/0/img/96310.jpg)
8 |
VIS TORX (4X22,3) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM180702 Plus d'informationsQuantité requise : 4 |
