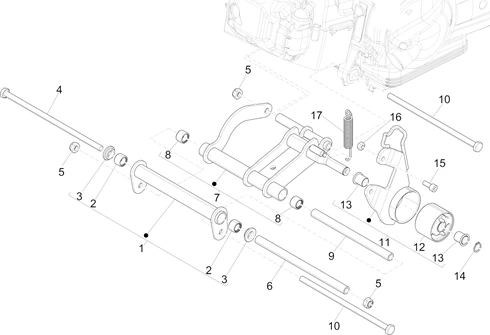

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_04.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/3/5/img/90235.jpg)
1 |
BRAS OSCILLANT COTE CADRE ORIGINE PIAGGIO 50-125 FLY 2012> -667436- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
2 |
CAGE A AIGUILLES DE BRAS OSCILLANT ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER -56127R Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
3 |
DOUILLE/JOINT ARTICULATION BRAS OSCILLANT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -597317 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/2/img/67042.jpg)
4 |
AXE/VIS BRAS OSCILLANT ORIGINE PIAGGIO 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -563977 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/7/img/72977.jpg)
6 |
ENTRETOISE BRAS OSCILLANT (L228MM) ORIGINE PIAGGIO 125-250-300 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, LIBERTY 2006>/GILERA 125-250-300 NEXUS 2007> -CM067803 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/0/4/img/90504.jpg)
7 |
BRAS OSCILLANT COTE MOTEUR ORIGINE PIAGGIO 125 FLY 3V 2012>2015 -669047 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
CAGE A AIGUILLES DE BRAS OSCILLANT ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER -56127R Plus d'informationsQuantité requise : 2 |
||||||
9 |
CM067808 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AXE/VIS BRAS OSCILLANT ORIGINE PIAGGIO 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD -563977 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/7/2/3/img/82723.jpg)
11 |
SUPPORT SILENTBLOC COMPLET ORIGINE PIAGGIO 125 FLY 3V 2012> -5A000034- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
12 |
SILENTBLOC MOTEUR ORIGINE PIAGGIO 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
13 |
DOUILLE POUR SILENTBLOC DE BRAS OSCILLANT MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -273460 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
14 |
CLIPS/CIRCLIPS (14.6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006416 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
15 |
VIS BTR (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -599009 Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
ECROU M8 ORIGINE PIAGGIO COMMUN A LA GAMME -272176 Plus d'informationsQuantité requise : 3 |
||||||
|
17 |
669089 - MOLLE Plus d'informationsQuantité requise : 1 |
