Eclatés de véhicule - PIAGGIO FLY 125 4T-3V ie E3 DT 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

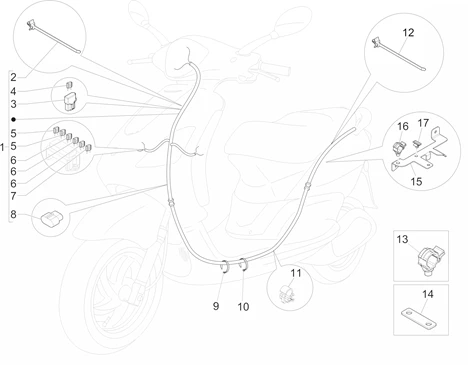

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_06.08.PNG)
1 |
1D000180 - FAISCEAU DE CABLES Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
640879 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
642405 - P/FUSIBLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.jpg)
4 |
FUSIBLE PLAT ENFICHABLE STANDARD 20A ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -580561 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
5 |
FUSIBLE PLAT ENFICHABLE STANDARD 10A ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -292507 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
6 |
FUSIBLE PLAT ENFICHABLE STANDARD 7,5A ORIGINE PIAGGIO COMMUN A LA GAMME -252945 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
7 |
FUSIBLE PLAT ENFICHABLE STANDARD 5A ORIGINE PIAGGIO COMMUN A LA GAMME -293256 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
582928 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
9 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
10 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
11 |
CLIPS ATTACHE FAISCEAU ORIGINE PIAGGIO COMMUN A LA GAMME -CM013203 Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
640879 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
13 |
COLIIER PINCE ORIGINE PIAGGIO COMMUN A LA GAMME -CM006905 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
642335 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
643403 - ETRIER DE SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
COLIIER PINCE ORIGINE PIAGGIO COMMUN A LA GAMME -CM006905 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
17 |
CLIPS CONNECTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -639560 Plus d'informationsQuantité requise : 1 |
