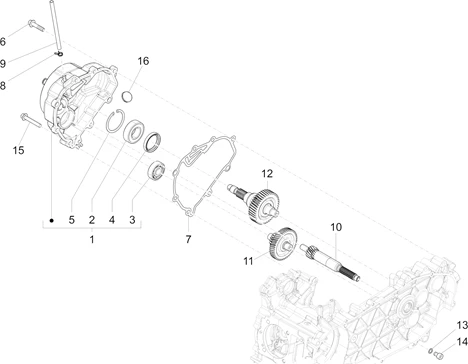

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/59/Fly_125_4T-3V_ie_E3_DT_2013_01.25.PNG)
1 |
B0162665 - COUVERCLE RID. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/7/4/img/127274.jpg)
2 |
ROULEMENT (25X52X15) REDUCTEUR ORIGINE PIAGGIO FLY, LIBERTY 2014>2015 -1A005346R Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
ROULEMENT (25X52X15) REDUCTEUR ORIGINE PIAGGIO FLY, LIBERTY 2014>2015 -1A005346R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
3 |
ROULEMENT (15X42X13) RADIAL ENSEMBLE REDUCTEUR ORIGINE COMMUN A LA GAMME PIAGGIO -83026R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/0/img/72690.jpg)
4 |
JOINT SPI (35X47X7) ORIGINE PIAGGIO COMMUN A LA GAMME -B015623 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
B016556 - MODELLO ZANG Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
6 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -B016772 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/9/7/img/94697.jpg)
7 |
JOINT COUVERCLE DE REDUCTEUR ORIGINE PIAGGIO 125 2012> COMMUN A LA GAMME -B016456 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
8 |
COLLIER DE SERRAGE DURITE (10X13) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002908 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B018670 - TUBE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
B017168 - ARBRE DE POULIE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
B0167545 - ARBRE TRNSMISSION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/6/3/1/img/204631.jpg)
12 |
AXE DE ROUE ARRIERE ORIGINE PIAGGIO 125 FLY, LIBERTY 2013> -1A023101 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AXE DE ROUE ARRIERE ORIGINE PIAGGIO 125 FLY, LIBERTY 2013> -1A023101 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
AXE DE ROUE ARRIERE ORIGINE PIAGGIO 125 FLY, LIBERTY 2013> -1A023101 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
13 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
14 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
15 |
VIS BRIDE TH (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -1A001623 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/2/8/4/img/75284.jpg)
16 |
BOUCHON PROTECTION ORIGINE PIAGGIO COMMUN A LA GAMME -1A000004 Plus d'informationsQuantité requise : 1 |
