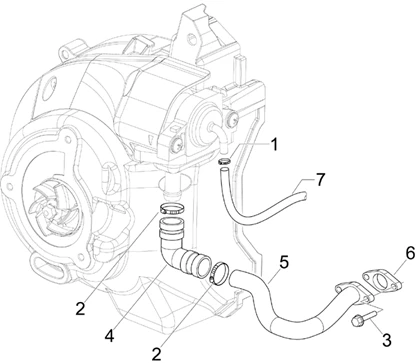

Moteur : 01.46 BOITIÎ AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/956/Carnaby_200_4T_E3_2007-2008_01.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
1 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
2 |
COLLIER DE SERRAGE DURITE (5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002901 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
3 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/8/img/68958.jpg)
4 |
MANCHON BOITIER DE DEPOLUTION ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005> -831259 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/9/img/68959.jpg)
5 |
TUBE DE BOITIER DEPOLUTION ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005> -831260 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
6 |
JOINT CANALISATION RECYCLAGE DES GAZ ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50CC 4T/MAXISCOOTER 125 -832059 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/1/img/69281.jpg)
7 |
TUBE RECYCLAGE DE GAZ ORIGINE COMMUN A LA GAMME PIAGGIO -843400 Plus d'informationsQuantité requise : 1 |
