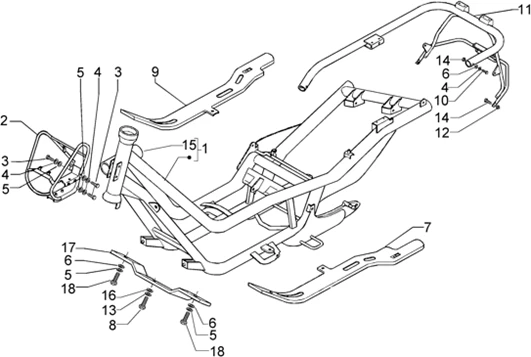

Châssis : T21 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T21.PNG)
1 |
6245535 - CHASSIS X9 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
5828494 - CHASSIS * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
3 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
4 |
RONDELLE PLATE (6,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -013950 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056 Plus d'informationsQuantité requise : 10 |
||||||
|
7 |
CM0102034 - TRAVERSE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
031117 - BOULON S03111700 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/0/8/0/img/95080.jpg)
9 |
TRAVERSE DE CHASSIS DROIT ORIGINE PIAGGIO 125-250-500 X9 -CM0102024 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
030059 - BOULON FIX POMPE Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
5755442 - CHASSIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
12 |
ECROU (M8X6,5) ORIGINE PIAGGIO COMMUN A LA GAMME -020108 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
14 |
VIS TH (8X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031119 Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
575357 - SUPPORT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
16 |
RONDELLE PLATE (8.4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -003038 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
6208696 - AXE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 8 |
