Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

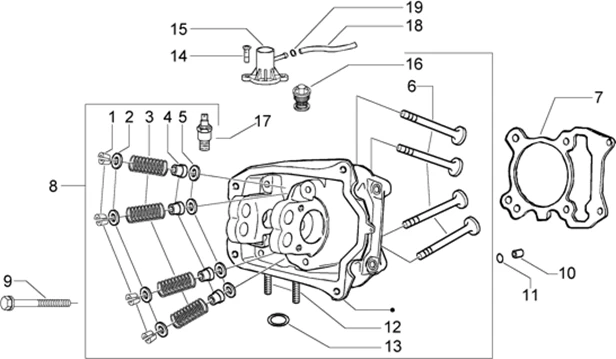

Moteur : T5 ENSEMBLE CULASSE-SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T5.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
1 |
DEMI-LUNE/CLAVETTE DE SOUPAPE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -285846 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/9/img/66649.jpg)
2 |
483914 - RONDELLE D'AR Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/8/img/68758.jpg)
3 |
RESSORT SOUPAPE ORIGINE PIAGGIO MP3 125-250-300 2006>2017, X9 125 2005>2009, X-EVO 125 2007>2016/ VESPA GTS 125-250-300 2005>2018 -828480 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
4 |
JOINT/BAGUE DE SOUPAPE ORIGINE PIAGGIO COMMUN A LA GAMME -436438 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
5 |
GODET INFERIEUR SOUPAPE ORIGINE PIAGGIO 125-150-200-250-300 COMMUN A LA GAMME -483711 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/7/img/146217.jpg)
6 |
SOUPAPE ADMISSION (22) ORIGINE PIAGGIO 125-250-300 X7, BEVERLY, MP3, VESPA GTS, CARNABY, 125-250 X8, EVO/APRILIA 125-250-300 ATLANTIC, SR MAX/GILERA125-250 NEXUS, RUNNER (MOTEUR LEADER) -873809 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/4/img/149104.jpg)
6 |
SOUPAPE D-ECHAPPEMENT (19.2) ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>X8, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC -873839 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/5/img/68835.jpg)
7 |
JOINT DE CULASSE 1,1MM ORIGINE PIAGGIO 200 COMMUN A LA GAMME 2006< -829265 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/1/img/68951.jpg)
7 |
JOINT DE CULASSE ORIGINE PIAGGIO 250 MP3, X8, X-EVO, X9, VESPA GTS/GILERA 250 NEXUS/APRILIA 250 SCARABEO, SPORT-CITY -831174 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/5/img/127185.jpg)
8 |
CULASSE ORIGINE PIAGGIO 125 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER (VENDU SANS ARBRE A CAMES NI BASCULEURS) -8475945 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/2/img/66682.jpg)
9 |
VIS TH (6X100) ORIGINE PIAGGIO COMMUN A LA GAMME -485603 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
10 |
PION DE CENTRAGE (11X10) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B015957 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/4/img/72764.jpg)
11 |
JOINT TORIQUE DE CYLINDRE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME 125-250 MAXISCOOTER -B017342 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/8/img/66478.jpg)
12 |
GOUJON (M7) FIXATION ECHAPPEMENT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250-300 -435629 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/2/img/66602.jpg)
13 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -480853 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
14 |
VIS CRUCIFORME (5X22) ORIGINE PIAGGIO COMMUN A LA GAMME -828662 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/1/6/img/69116.jpg)
15 |
TUYAU/CONDUITE ORIGINE PIAGGIO 125-200-250 BEVERLY, X8, X9 2006< -834394 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/5/img/68745.jpg)
16 |
THERMOSTAT/CALORSTAT MAXISCOOTER ORIGINE PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, 125-250 X-EVO, X9, /GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SPORT-CITY -82831R5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/0/img/68590.jpg)
17 |
SONDE TEMPERATURE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC 2003 -82622R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/6/img/68716.jpg)
18 |
DURITE/TUBE THERMOSTAT ORIGINE PIAGGIO 125 BEVERLY, X8, X9 -827921 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
19 |
COLLIER DE SERRAGE DURITE (6X9) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002902 Plus d'informationsQuantité requise : 1 |
