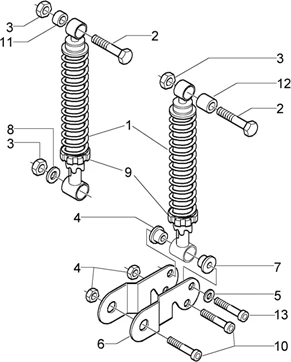

Suspensions-roues : T36 AMORTISSEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/4/2/img/79842.jpg)
1 |
AMORTISSEUR ARRIERE ORIGINE PIAGGIO 125-250 X9 1998>2006 -56231R- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/4/img/65384.jpg)
2 |
VIS TH (10X65) ORIGINE PIAGGIO COMMUN A LA GAMME -015594 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
4 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -020008 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
5 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 1 |
||||||
6 |
598938 - ETRIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/2/3/7/img/82237.jpg)
7 |
DOUILLE EN T POUR AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME -597149 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
8 |
RONDELLE PLATE (10,4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -016626 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
PLATEAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
10 |
VIS BTR (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -844483 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
597178 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
597179 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
13 |
VIS TH (10X45) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -015578 Plus d'informationsQuantité requise : 1 |
Tous les éclatés de ce véhicule
-
