Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

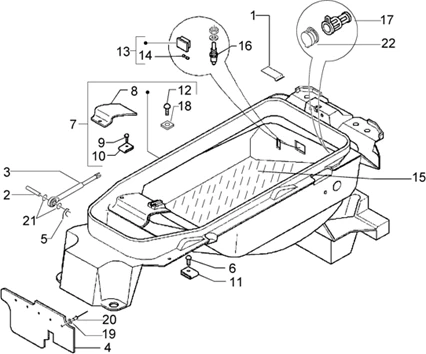

Châssis : T31 PORTE-CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/6/img/67116.jpg)
1 |
TRAPPE ACCES FUSIBLE ORIGINE PIAGGIO COMMUN A LA GAMME-575551 Plus d'informationsQuantité requise : 1 |
||||||
2 |
GOUPILLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/7/0/7/img/83707.jpg)
2 |
GOUPILLE AMORTISSEUR DE SELLE ORIGINE PIAGGIO X9 -620767 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
575848 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
576754 - PARE-BOUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
5 |
CLIPS/GOUPILLE ORIGINE PIAGGIO COMMUN A LA GAMME -259933 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 8 |
||||||
|
7 |
621116 - PORTE-CASQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/5/7/8/img/80578.jpg)
8 |
TRAPPE DE VISITE DU CARBURATEUR ORIGINE PIAGGIO 125-250-500 X9 -575550 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
10 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
12 |
VIS AUTOTARAUDEUSE (4X35) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -265636 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/1/img/66261.jpg)
13 |
ECLAIRAGE/PLAFONNIER COFFRE ORIGINE PIAGGIO COMMUN A LA GAMME -293154 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
14 |
AMPOULE/LAMPE 12V 5W NAVETTE ORIGINE PIAGGIO COMMUN A LA GAMME -071633 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
576245 - TAPIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/1/img/66011.jpg)
16 |
INTERUPTEUR ECLAIRAGE COFFRE A CASQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -255323 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/5/img/66275.jpg)
17 |
PRISE DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME -294770 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
19 |
RONDELLE PLATE (4.5X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016670 Plus d'informationsQuantité requise : 3 |
||||||
|
20 |
252099 - RIVET Plus d'informationsQuantité requise : 3 |
||||||
|
21 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/1/6/img/67216.jpg)
22 |
BOUCHON OBTURATEUR DE TABLEAU DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -581412 Plus d'informationsQuantité requise : 1 |
