Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

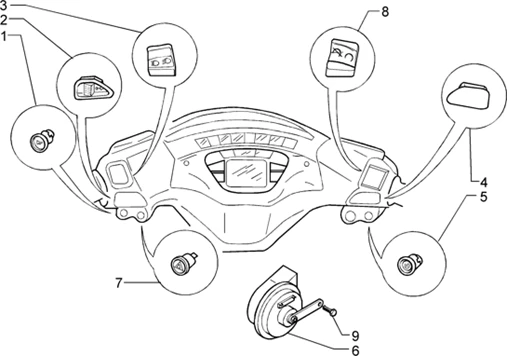

Connexions électriques : T45 DISPOSITIFS ELECTRIQUES-CLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
1 |
BOUTON/COMMUTATEUR AVERTISSEUR ORIGINE PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT GAUCHE -58058R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/6/img/67806.jpg)
2 |
CONTACTEUR/COMMUTATEUR DE CLIGNOTANT ORIGINE PIAGGIO 125-250-500 X9/APRILIA 250-300-400-500 SCARABEO -638708 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
3 |
COMMUTATEUR CODE/PHARE ORIGINE PIAGGIO 125-250-300-400 500 MP3 2008>2014, 125-250-400 X8 2004>2006, X9, X-EVO 2007>, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO -642670 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/3/6/img/71636.jpg)
4 |
BOUCHON/OBTURATEUR DE TABLEAU DE BORD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8127896 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
5 |
BOUTON DEMARRAGE ORIGINE PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/6/5/img/81565.jpg)
6 |
AVERTISSEUR/KLAXON ORIGINE PIAGGIO 125-250-500 X9 2003> -581441- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/5/img/67265.jpg)
7 |
BOUTON WARNING ORIGINE PIAGGIO 125-250-400 MP3, X-EVO, X9/APRILIA 250-300-400-500 SCARABEO -58284R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
8 |
COMMUTATEUR ARRET MOTEUR/COUPE CIRCUIT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -641824 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
9 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
