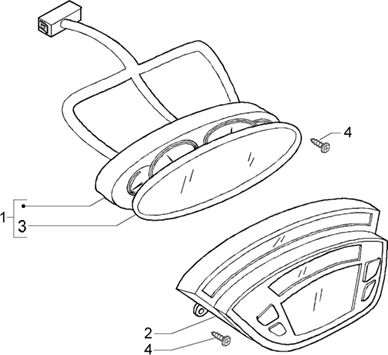

Guidon : T37 GROUPE DES INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T37.PNG)
Rechercher
1 |
COMPTEUR ORIGINE PIAGGIO X9 -639179- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
640259 - COMPTEUR STR DIGIT * Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
TRANSPARENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
4 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 8 |
