Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

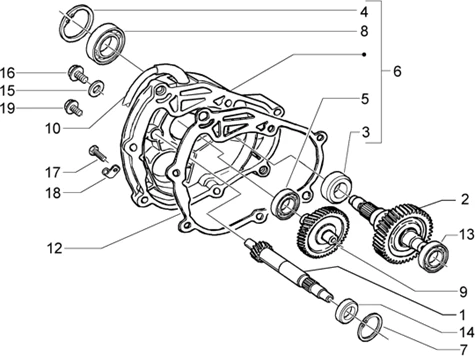

Moteur : T11 ARBRE ROUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/5/img/70505.jpg)
1 |
ARBRE DE POULIE RECEPTRICE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 -8738745 Plus d'informationsQuantité requise : 1 |
||||||
2 |
8322545 - AXE ROUE DT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/9/img/68939.jpg)
3 |
JOINT SPI (38X50X7) AXE DE ROUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -83082R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/5/img/68825.jpg)
4 |
CLIPS/CIRCLIPS ARBRE DE TRASMISSION ORIGINE PIAGGIO COMMUN A LA GAMME -829206 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
5 |
ROULEMENT (15X42X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -83018R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/2/img/70342.jpg)
6 |
COUVERCLE DE REDUCTEUR ORIGINE PIAGGIO 125 MP3, X8, X-EVO, VESPA GTS/GILERA 125 NEXUS, RUNNER -8710735 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
7 |
CLIPS/CIRCLIPS (25X26,9X1,2) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B015959 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/3/img/139393.jpg)
8 |
ROULEMENT (30X55X13) DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1A005376R Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
8319145 - ARBRE DE RENVOI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/0/img/68940.jpg)
10 |
TUYAU RENIFLARD DE RECTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -830862 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/8/img/69548.jpg)
12 |
JOINT CARTER TRANSMISSION MAXISCOOTER ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005> -847930 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
ROULEMENT (15X42X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -83018R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
14 |
JOINT ARBRE TRANSMISSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250-300 -82878R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
15 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
16 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
17 |
VIS BRIDE TH (8X45) ORIGINE PIAGGIO COMMUN A LA GAMME -B016805 Plus d'informationsQuantité requise : 4 |
||||||
|
18 |
487948 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/1/img/72731.jpg)
19 |
VIS BRIDE TH (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B016806 Plus d'informationsQuantité requise : 3 |
