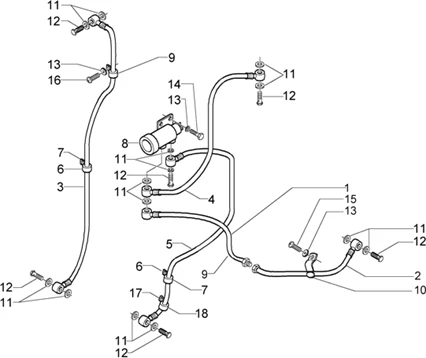

Châssis : T40 CANALISATION D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T40.PNG)
1 |
600812 - CANALISATEUR A FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/8/2/6/img/82826.jpg)
2 |
DUTITE DE FREIN ARRIERE ORIGINE PIAGGIO 125-250 X9 -600290- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
597592 - CANALIS. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
599837 - TUYAU A FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/4/5/img/80145.jpg)
4 |
FLEXIBLE DE FREIN (DU MAITRE CYLINDRE ARRIERE AU REPARTITEUR) ORIGINE PIAGGIO 125-250-500 X9/GILERA 500 NEXUS -564784- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
598827 - CANALISAT. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
599838 - TUYAU A FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/1/img/67081.jpg)
6 |
COLLIER FIXATION GAINE ORIGINE PIAGGIO COMMUN A LA GAMME -564836 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/0/img/65960.jpg)
7 |
PASSE-CABLE CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME-230636 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
56122R - VALVE REGLAGE PRESSION * Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
274350 - PASSE CABLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/8/img/67068.jpg)
10 |
564629 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
11 |
JOINT CUIVRE (10X14X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927 Plus d'informationsQuantité requise : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
12 |
VIS BANJO POUR FREIN ORIGINE PIAGGIO COMMUN A LA GAMME -265451 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
13 |
RONDELLE RESSORT (6,4X11X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME -006966 Plus d'informationsQuantité requise : 7 |
||||||
|
14 |
VIS |
||||||
|
15 |
018509 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
16 |
VIS BTR (6X12) ORIGINE PIAGGIO COMMUN A LA GAMME -122675 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
564835 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
563989 - PASSE CABLE Plus d'informationsQuantité requise : 1 |
