Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

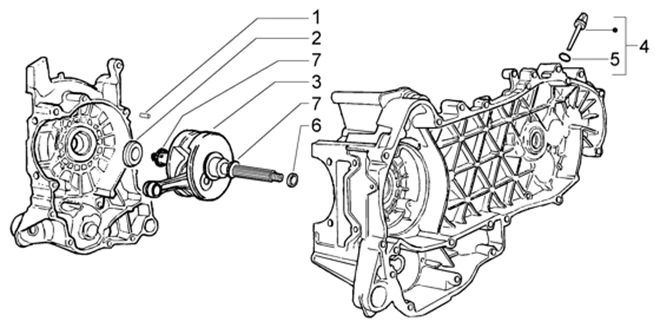

Moteur : T3 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T3.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
1 |
PION DE CENTRAGE (11X10) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B015957 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/5/img/68805.jpg)
2 |
JOINT SPI (20X30X7) VILEBREQUIN COTE ALLUMAGE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, GTS 2007>/125 NEXUS 2007>, RUNNER 4T 2005> -82898R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/7/7/img/69177.jpg)
3 |
VILEBREQUIN ORIGINE PIAGGIO 180 HEXAGON, 200 X8, LIBERTY, BEVERLY, X9/GILERA 200 RUNNER/APRILIA 125-200-250 ATLANTIC -8411965001 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/7/8/img/69178.jpg)
3 |
VILEBREQUIN ORIGINE PIAGGIO 180 HEXAGON, 200 X8, LIBERTY, BEVERLY, X9/GILERA 200 RUNNER/APRILIA 125-200-250 ATLANTIC -8411965002- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
4 |
JAUGE NIVEAU HUILE TRANSMISSION ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER -832130 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
5 |
JOINT/BAGUE ETANCHEITE (14,43X9,19X2,62) ORIGINE PIAGGIO COMMUN A LA GAMME -827085 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/3/img/68573.jpg)
6 |
JOINT TORIQUE DE PIGNON DE POMPE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -825952 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/2/img/68742.jpg)
7 |
RONDELLE DE VILEBREQUIN ORIGINE PIAGGIO 125-200-300 2005< -828297 Plus d'informationsQuantité requise : 2 |
