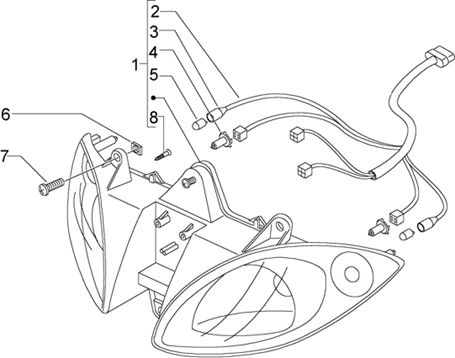

Connexions électriques : T42 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/6/1/img/82061.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 125-250-500 X9 EVO -584404 Plus d'informationsQuantité requise : 1 |
||||||
1 |
584413 - PROJECTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
FAISCEAU PHARE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
3 |
PORTE AMPOULE ORIGINE PIAGGIO 125-300 GTS 2008>2016 -253327 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
4 |
AMPOULE/LAMPE 12V 55W H7 ORIGINE PIAGGIO COMMUN A LA GAMME -294353 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
5 |
AMPOULE/LAMPE 12V 3W W2,1X9,5D ORIGINE PIAGGIO COMMUN A LA GAMME -294131 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
8 |
VIS AUTOTARAUDEUSE (2,9X9,5) CRUCIFORME ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -015727 Plus d'informationsQuantité requise : 6 |
