Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

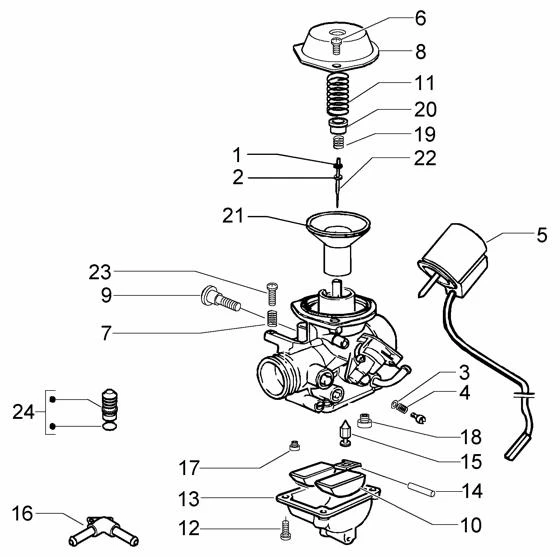

Moteur : T18 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T18.PNG)
1 |
826822 - CIRCLIPS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
826821 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT VIS DE RICHESSE ORIGINE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CM129802 - DISPOSITIF WALBRO (ABOLI SANS REMPLACEMENT) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
6 |
VIS CRUCIFORME (4X10) COUVERCLE DE BOISSEAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC -826780 Plus d'informationsQuantité requise : 5 |
||||||
|
7 |
826825 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/4/img/68674.jpg)
8 |
COUVERCLE VOLET DE GAZ ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC 1998>2005 -827467- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
826826 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
FLOTTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 125 -826812- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
CM107902 - RESSORT SOUPAPE M20-180 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
826770 - VIS Plus d'informationsQuantité requise : 5 |
||||||
|
13 |
CUVETTE |
||||||
|
14 |
Arrªt |
||||||
|
15 |
826786 - POINTEAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
828742 - RECHAFFEUR Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
CM105301 - GICLEUR RALENTI Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
CM105407 - GICL.MAXI Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
Ressort |
||||||
|
20 |
Rondelle d'ar |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
21 |
BOISSEAU POUR CARBU WALBRO ORIGINE PIAGGIO 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701 Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
CM106504 - GOUPILLE Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
826824 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
SET MANCHON CARBURATEUR |
