Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

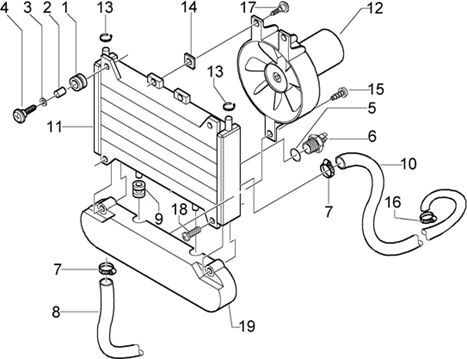

Châssis : T30 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
1 |
CAOUTCHOUC ANTI-VIBRATIONS ORIGINE PIAGGIO COMMUN A LA GAMME Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
2 |
ENTRETOISE (6X10X11.4) ORIGINE PIAGGIO COMMUN A LA GAMME -273288 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
3 |
RONDELLE 6,2X20X1 ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -013092 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
4 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
4 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -271891 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/8/img/65768.jpg)
5 |
JOINT CUIVRE SONDE DE TEMPERATURE REFROIDISSEMENT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -168077 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/0/img/67310.jpg)
6 |
SONDE DE TEMPERATURE EAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -584715 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
7 |
COLLIER DURITE REFROIDISSEMENT OU FILTRE A AIR (25.6MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001907 Plus d'informationsQuantité requise : 2 |
||||||
8 |
577537 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
9 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCCOOTER -258904 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
RACCORD |
||||||
|
11 |
57301R - RADIATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
580922 - ELECTRO VENTILATEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
13 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
15 |
VIS AUTOTARAUDEUSE (L 20 MM) ORIGINE PIAGGIO COMMUN A LA GAMME -267958 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
16 |
COLLIER DURITE REFROIDISSEMENT (30.8 MM) ORIGINE PIAGGIO COMMUN A LA GAMME -CM001908 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
17 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/4/img/65394.jpg)
18 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -015761 Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
624511 - GRILLE RADIATEUR Plus d'informationsQuantité requise : 1 |
