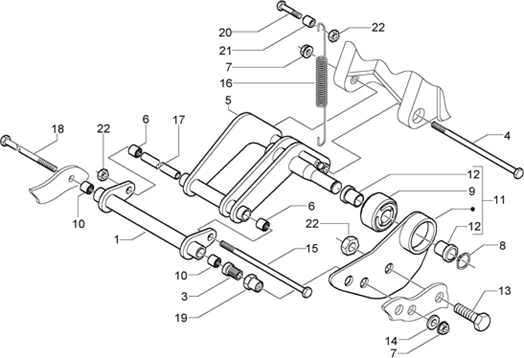

Châssis : T22 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/4/img/67344.jpg)
1 |
BRAS OSCILLANT ORIGINE PIAGGIO 125-250 X8 2004>2006, X9 2005>, X-EVO 2007>, BEVERLY 2005>/GILERA 125-250-300 NEXUS 2007>, 250-300 SCARABEO-LIGHT -5975035 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/7/img/72977.jpg)
2 |
ENTRETOISE BRAS OSCILLANT (L228MM) ORIGINE PIAGGIO 125-250-300 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, LIBERTY 2006>/GILERA 125-250-300 NEXUS 2007> -CM067803 Plus d'informationsQuantité requise : 1 |
||||||
3 |
597079 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/0/img/67330.jpg)
4 |
VIS TH (10X210) ORIGINE PIAGGIO COMMUN A LA GAMME -597081 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/3/img/67343.jpg)
5 |
BRAS OSCILLANT COTE MOTEUR ORIGINE PIAGGIO 125-250 X9 2000>/GILERA 125-250-300 NEXUS 2007>/APRILIA 125-300 SR-MAX 2012> -597502 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/6/7/img/81567.jpg)
6 |
BAGUE/DOUILLE DE BEQUILLE CENTRALE ORIGINE PIAGGIO 125 X9 -581466 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/4/img/67084.jpg)
7 |
ECROU BRIDE (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -564878 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
8 |
CLIPS/CIRCLIPS (14.6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006416 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
9 |
SILENTBLOC MOTEUR ORIGINE PIAGGIO 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
10 |
CAGE A AIGUILLES DE BRAS OSCILLANT ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA SPORT-CITY, SR MAX/GILERA NEXUS, RUNNER -56127R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/6/9/2/img/82692.jpg)
11 |
PLAQUE SUPPORT SILENTBLOC POUR BEQUILLE ORIGINE PIAGGIO 125-250 X9 -599954- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
12 |
DOUILLE POUR SILENTBLOC DE BRAS OSCILLANT MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -273460 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
13 |
BOULON TH ORIGINE PIAGGIO COMMUN A LA GAMME M10X20 -031153 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/3/img/67333.jpg)
14 |
RONDELLE PLATE (10X31X3.5) ORIGINE PIAGGIO COMMUN A LA GAMME -597230 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
15 |
AXE/VIS BRAS DE SUSPENSION (10X202) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -271807 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
597082 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/1/img/67341.jpg)
16 |
RESSORT DE BRAS OSCILLANT ORIGINE PIAGGIO 125-250 MP3, X-EVO, X9, BEVERLY/GILERA 125-250-300 NEXUS -597490 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/5/img/72975.jpg)
17 |
ENTRETOISE BRAS OSCILLANT (L183MM) ORIGINE PIAGGIO 125-250-300-400-500 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -CM067801 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/9/img/67329.jpg)
18 |
VIS TH (10X295) ORIGINE PIAGGIO COMMUN A LA GAMME -597080 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/7/img/67067.jpg)
19 |
ECROU SPECIAL (22X2 H=8) BRAS OSCILLANT ORIGINE PIAGGIO COMMUN A LA GAMME -564611 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
015582 VIS S01558200 Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
597959 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
22 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 8 |
