Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

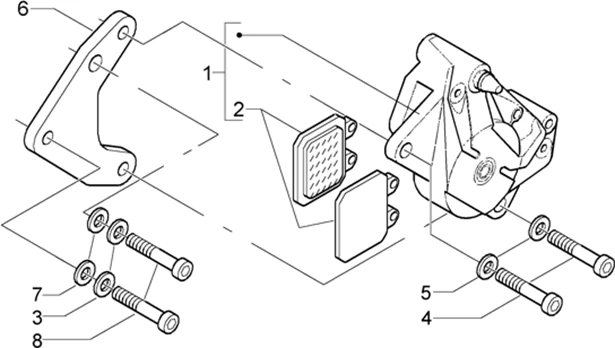

Suspensions-roues : T41 PINCES FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T41.PNG)
1 |
PINCES FREIN AVANT GAUCHE ORIGINE PIAGGIO 400-500 BEVERLY -56473R- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
PINCES FREIN DROIT ORIGINE PIAGGIO 400-500 BEVERLY -56472R Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
56471R - ETRIER FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/9/2/img/79792.jpg)
1 |
ETRIER DE FREIN ARRIERE ORIGINE PIAGGIO 125-250 X9 1998>2006 -56164R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/3/img/68003.jpg)
2 |
PLAQUETTE DE FREIN ORIGINE PIAGGIO 125-250 X9-EVO AV+AR, 125 X8 AR, 400-500 BEVERLY AR, 500 X9-EVO/GILERA 500 NEXUS AR (PAIRE) (BREMBO) -647077 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/4/img/63804.jpg)
3 |
RONDELLE PLATE (10.5X20X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -006173 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/9/img/67369.jpg)
4 |
VIS BTR (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -598919 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/2/8/6/img/82286.jpg)
6 |
PLAQUE SUPPORT ETRIER DE FOURCHE AVANT ORIGINE PIAGGIO X9 2005< -597578 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/0/1/img/67401.jpg)
6 |
PLAQUE/SUPPORT ETRIER ARRIERE ORIGINE PIAGGIO 125-250 X9 -599684- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
7 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/8/8/img/80088.jpg)
8 |
VIS BTR (10X25) FIXATION SUPPORT ETRIER ORIGINE PIAGGIO X8 125 1998>2006, X9 125 1998>2005 / GILERA NEXUS 125-250 2006>2008 -564486 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
8 |
VIS BTR (8X25) ETRIER OU AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME -597150 Plus d'informationsQuantité requise : 2 |
