Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

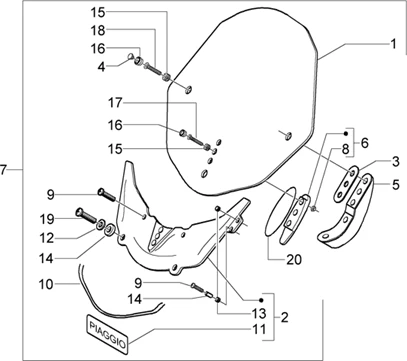

Châssis : T25 PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/0/5/9/img/81059.jpg)
1 |
PARE BRISE (MONTE ORIGINE) ORIGINE MAXISCOOTER PIAGGIO 125-250-500 X9 2003> -577102 Plus d'informationsQuantité requise : 1 |
||||||
2 |
SUPPORT INFERIEUR DE PARE-BRISE PIAGGIO 125-250-500 X9 -5772650038- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/2/img/67152.jpg)
4 |
BOUCHON DE PARE BRISE ORIGINE PIAGGIO 125-300-400-500 MP3/GILERA 125-250-300-500 NEXUS 2018< -577237 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
935119 - KIT FIXATION PAREBRISE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
935119 - KIT FIXATION PAREBRISE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
PARE BRISE REGLABLE TRANSPARENT ORIGINE PIAGGIO 125-250-500 X9 1998>2005 -602664M- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
8 |
ECROU M6 ORIGINE PIAGGIO COMMUN A LA GAMME -020206 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
9 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/0/4/0/img/95040.jpg)
10 |
JOINT DE PARE BRISE ORIGINE PIAGGIO X9 -CM006001 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/7/0/img/80370.jpg)
11 |
AUTOCOLLANT/STICKER/DECOR ORIGINE PIAGGIO COMMUN A LA GAMME -5743990095 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
12 |
RONDELLE 6,2X20X1 ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -013092 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
13 |
PASSE-CABLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -576565 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
14 |
ENTRETOISE (6X10X11.4) ORIGINE PIAGGIO COMMUN A LA GAMME -273288 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/3/img/66993.jpg)
15 |
560173 - SILENTBLOC Plus d'informationsQuantité requise : 3 |
||||||
|
16 |
621940 - COUVERCLE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
17 |
VIS EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -576836 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
18 |
VIS TORX (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -1B006381 Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
VIS TORX (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -1B006381 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
19 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -271891 Plus d'informationsQuantité requise : 4 |
||||||
|
20 |
935119 - KIT FIXATION PAREBRISE Plus d'informationsQuantité requise : 1 |
