Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

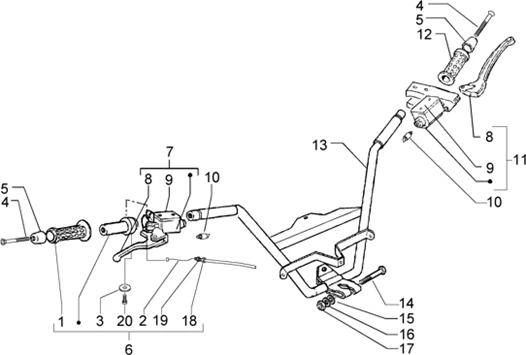

Guidon : T39 GUIDON-POMPE DU FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
1 |
REVETEMENT DE POIGNEE DROITE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -271453 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/2/0/img/95520.jpg)
2 |
TRANSMISSION/CABLE DE GAZ ORIGINE PIAGGIO 125-250 X9 1998>2005 -CM065911 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
3 |
BAGUE POIGNEE GAZ 38,3X27X1,2 COMMUN A LA GAMME PIAGGIO -6562923 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/5/img/158365.jpg)
4 |
VIS TORX TETE FRAISEE (6X55) EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -1B006376 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
VIS TORX TETE FRAISEE (6X55) EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -1B006376 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/2/7/img/77327.jpg)
5 |
EMBOUT DE GUIDON CHROME ORIGINE PIAGGIO 125-250 X9, X8, X7, X-EVO, BEVERLY/GILERA 50-125 RUNNER -271433 Plus d'informationsQuantité requise : 2 |
||||||
5 |
583697 - CONTRE POIDS X9/BEV125/200/500+GT Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/4/2/6/img/95426.jpg)
6 |
POIGNEE DE GAZ ORIGINE PIAGGIO 125-250 X9 -CM060930- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/5/img/95665.jpg)
7 |
MAITRE CYLINDRE DE FREIN AVANT ORIGINE PIAGGIO 125-250 X9 -CM076301- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/4/2/img/86642.jpg)
8 |
LEVIER DE FREIN MAXISCOOTER ORIGINE PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 400 X-EVO/GILERA 500 NEXUS, FUOCO DROIT/GAUCHE (BREMBO) -646829 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/4/1/3/img/79413.jpg)
9 |
COUVERCLE DE MAITRE CYLINDRE DE FREIN ORIGINE PIAGGIO 125-250-400-500 BEVERLY, 400 X8, 125-250-500 X9/GILERA 500 NEXUS -497032- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/6/img/67286.jpg)
10 |
CONTACTEUR FEU STOP MAXISCOOTER ORIGINE PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/6/img/95666.jpg)
11 |
MAITRE CYLINDRE DE FREIN ARRIERE ORIGINE PIAGGIO 125-250 X9 2003> -CM076304 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
12 |
REVETEMENT DE POIGNEE GAUCHE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -271452 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/6/2/img/81662.jpg)
13 |
GUIDON ORIGINE PIAGGIO 125-250-500 X9 -5818804 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
14 |
VIS BTR (10X65) ORIGINE PIAGGIO COMMUN A LA GAMME -655554 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
15 |
RONDELLE PLATE (10.3X22X2.5) ORIGINE PIAGGIO COMMUN A LA GAMME -178790 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
16 |
RONDELLE CRANTEE (10.3X17X2) ORIGINE PIAGGIO COMMUN A LA GAMME -012543 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
17 |
ECROU (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -015330 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/8/img/66078.jpg)
18 |
TENDEUR/VIS DE REGLAGE CABLE (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -269145 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
19 |
ECROU M6 ORIGINE PIAGGIO COMMUN A LA GAMME -020206 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
20 |
VIS BTR (6X17) AVEC DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -123394 Plus d'informationsQuantité requise : 1 |
