Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

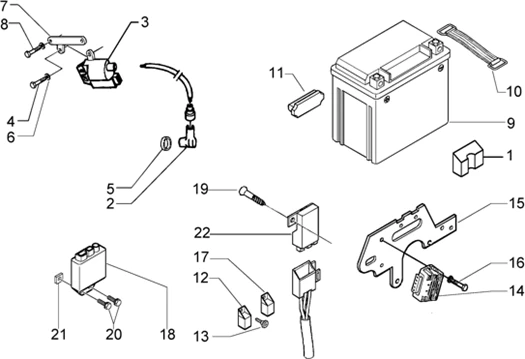

Connexions électriques : T46 DISPOSITIFS ELECTRIQUES-BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/1/img/67281.jpg)
1 |
TAMPON MOUSSE ORIGINE PIAGGIO COMMUN A LA GAMME -583310 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
2 |
ANTIPARASITE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -293845 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/6/img/67186.jpg)
3 |
BOBINE ALLUMAGE MAXISCOOTER ORIGINE PIAGGIO 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4T/APRILIA 125 SPORT-CITY-ONE -58083R Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
4 |
VIS CRUCIFORME (5X21) ORIGINE PIAGGIO COMMUN A LA GAMME -015856 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/4/img/68734.jpg)
5 |
CAOUTCHOUC ANTI PARASITE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -8282106 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
6 |
RONDELLE A DENTS (5,3X10) ORIGINE PIAGGIO COMMUN A LA GAMME -012528 Plus d'informationsQuantité requise : 1 |
|||||||||
7 |
582140 - SUPPORT BOBINE M23 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
8 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 2 |
|||||||||
|
9 |
497629 - BATTERIE 12V 11A 100CCA (PB10L-B) Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
10 |
COURROIE/SANGLE DE BATTERIE ORIGINE PIAGGIO COMMUN A LA GAMME -090854 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/4/img/67154.jpg)
11 |
TAMPON SILENTBLOC ORIGINE PIAGGIO COMMUN A LA GAMME -577313 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
12 |
RELAIS DEMARREUR MAXISCOOTER ORIGINE PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A) -58115R Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/6/7/img/112767.jpg)
12 |
CLIPS/CIRCLIPS DE TRANSMISSION ORIGINE PIAGGIO PORTER -588337 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
13 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/7/img/67187.jpg)
14 |
REGULATEUR MAXISCOOTER ORIGINE PIAGGIO 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 Plus d'informationsQuantité requise : 1 |
|||||||||
|
15 |
582141 - ETRIER Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
16 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
17 |
RELAIS DEMARREUR 12V 30A ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -58246R Plus d'informationsQuantité requise : 1 |
|||||||||
|
18 |
58054R - DISPOSITIF ELECTR.IMM. Plus d'informationsQuantité requise : 1 |
|||||||||
|
19 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
20 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
|||||||||
|
20 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
21 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/8/8/img/81788.jpg)
22 |
RELAIS ECLAIRAGE (12V30A) ORIGINE PIAGGIO 125-250 MP3, X9 -582634 Plus d'informationsQuantité requise : 1 |
|||||||||
