Eclatés de véhicule - PIAGGIO X9 200 Evolution 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

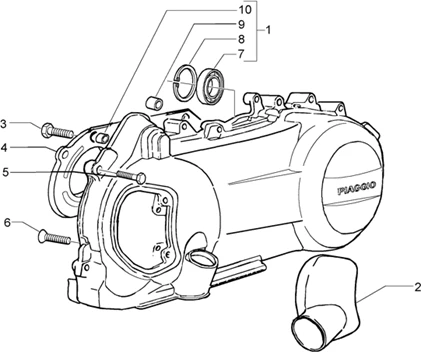

Moteur : T14 REFROIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T14.PNG)
1 |
Couvercle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/8/img/68668.jpg)
2 |
COUVERCLE EMBOUT PRISE AIR ORIGINE PIAGGIO 125-200 2005< -827400 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
3 |
VIS CRUCIFORME (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -430264 Plus d'informationsQuantité requise : 5 |
||||||
|
4 |
834266 - DIAPHRAGME POUR AIR CHAUD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
5 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
6 |
VIS AUTOTARAUDEUSE (3X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -258146 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
7 |
ROULEMENT (15X35X11) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250-300 -4789853 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
8 |
CIRCLIPS (D=38) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006635 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
9 |
BAGUE/DOUILLE BRONZE 8X12X8 ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -431860 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
10 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 2 |
