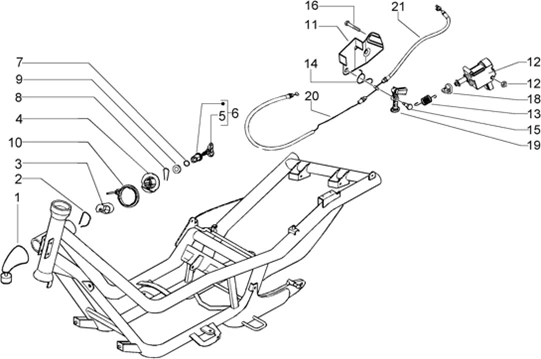

Châssis : T49 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/430/X9_200_Evolution_1998-2005_T49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/8/img/67988.jpg)
1 |
CONTACTEUR A CLE/SERRURE ORIGINE PIAGGIO 125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO 2007>, X8 2004>2006, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9 -643132 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
2 |
RESSORT D'ARRET DE CONTACTEUR A CLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -253937 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/6/img/67166.jpg)
3 |
BLOC DE SERRURE ORIGINE PIAGGIO X7, X9, X10, BEVERLY, CARNABY/APRILIA SCARABEO -577816 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
4 |
CORPS DE SERRURE ORIGINE PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9 -1B002607 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/8/4/img/80684.jpg)
5 |
EBAUCHE DE CLE ORIGINE PIAGGIO 125 X8, X9, X7, X-EVO, BEVERLY, FLY, LIBERTY -575810 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/0/5/img/80905.jpg)
6 |
JEU DE CLES AVEC BARILLET ORIGINE PIAGGIO 125-250 X8 2004>2006, 125-250-500 X9 1998>, BEVERLY 1998>2005 -576552 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
7 |
JOINT DE SERRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298731 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
8 |
RESSORT D'ARRET SERRRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298838 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
9 |
RONDELLE DE BLOC DIRECTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -298594 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/7/img/67237.jpg)
10 |
ANTENNE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER (AVANT 2012) -1D003415R Plus d'informationsQuantité requise : 1 |
||||||
11 |
577194 - EQUERRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
12 |
MOTEUR OUVERTURE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -1D002276R Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
MOTEUR OUVERTURE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -1D002276R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
13 |
RESSORT DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -620415 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
577131 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
15 |
VIS SPECIALE DOIGT DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -299972 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
16 |
VIS TH (4X35) ORIGINE PIAGGIO COMMUN A LA GAMME -584121 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
17 |
ECROU AUTOBLOQUANT/NYLSTOP (M4X70) ORIGINE PIAGGIO COMMUN A LA GAMME -577620 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
18 |
JOINT DE CABLE/TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME -577128 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
19 |
LEVIER DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -577129 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/0/9/img/95109.jpg)
20 |
CABLE/TRANSMISSION OUVERTURE DE SELLE (1ERE PARTIE) ORIGINE PIAGGIO 125-250-500 X9 -CM012805 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/1/2/img/95112.jpg)
21 |
CABLE/COMMANDE/TRANSMISSION OUVERTURE DE SELLE 2EME PARTIE ORIGINE PIAGGIO 125-250-500 X9 -CM012809 Plus d'informationsQuantité requise : 1 |
