Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

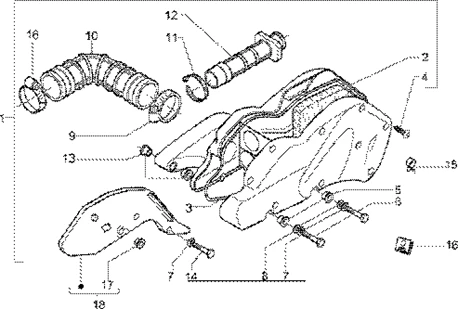

Châssis : T22 FILTRE A AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T22.PNG)
1 |
871803 - BOITE FILTRE AIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/7/0/img/156970.jpg)
2 |
ELEMENT/MOUSSE DE FILTRE A AIR (PREMIUM) MAXISCOOTER ORIGINE PIAGGIO 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/3/img/68833.jpg)
3 |
JOINT COUVERCLE FILTRE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -829259 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
4 |
VIS AUTOTARAUDEUSE (3X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -258146 Plus d'informationsQuantité requise : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
5 |
DOUILLE EN T (D5) MOLETEE CENTRAGE BOITE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME -830056 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
6 |
VIS CRUCIFORME (6X50) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -018640 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
7 |
RONDELLE EVENTAIL (6,6X11X0) ORIGINE PIAGGO COMMUN A LA GAMME -012533 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
8 |
RONDELLE PLATE (6X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -003056 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
9 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.jpg)
9 |
COLLIER 58-62.5 ORIGINE PIAGGIO COMMUN A LA GAMME -260918 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
827939 - MANCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
11 |
COLLIER CLIC 35-33 ORIGINE PIAGGIO COMMUN A LA GAMME -CM001926 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/6/img/68856.jpg)
12 |
MANCHON ASPIRATION DE BOITIER FILTRE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -829543- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
13 |
BAGUE/DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -830057 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/6/4/6/img/75646.jpg)
14 |
VIS TORX (6X55) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -1B000678 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
VIS TORX (6X55) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -1B000678 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
15 |
COLLIER DURITE (D13) REFROIDISSEMENT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -CM002910 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
DOUILLE EN T (D5) MOLETEE CENTRAGE BOITE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME -830056 Plus d'informationsQuantité requise : 3 |
||||||
|
18 |
652802 - PARATIA COMPLE Plus d'informationsQuantité requise : 1 |
