Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

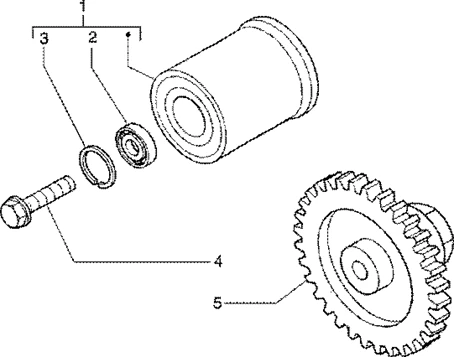

Moteur : T14 LIMITEUR DE COUPE-POULIE D'AMORTISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/4/img/69094.jpg)
1 |
POULIE DE COURROIE ORIGINE PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS -833989 Plus d'informationsQuantité requise : 1 |
||||||
2 |
82577R - ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
3 |
CIRCLIPS (D=38) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006635 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/6/img/68736.jpg)
4 |
VIS POULIE DE COURROIE ORIGINE PIAGGIO COMMUN A LA GAMME 200-250-300 -828217 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
LIMITEUR |
||||||
|
5 |
840815 - LIMITEUR Plus d'informationsQuantité requise : 1 |
