Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

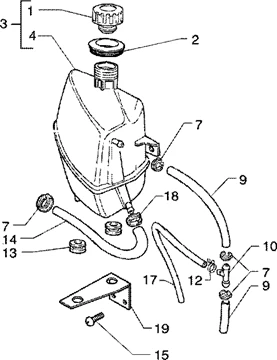

Châssis : T31 VASE D'EXPANSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
1 |
BOUCHON VASE EXPANSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER -623673 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
2 |
JOINT DE BOUCHON DE RESERVOIR LIQUIDE REFROIDISSEMENT ORIGINE PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX -620737 Plus d'informationsQuantité requise : 1 |
||||||
3 |
655527 - RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
7 |
COLLIER (16.2MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001903 Plus d'informationsQuantité requise : 5 |
||||||
|
9 |
575539 - TUBE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
574883 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
12 |
COLLIER DE SERRAGE DURITE (6X9) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002902 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
13 |
SILENTBLOC ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCCOOTER -258904 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
575540 - TUBE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
15 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
CM000704 - TUBE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
18 |
COLLIER DURITE (19.8MM) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -CM001904 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
575864 - ETRIER Plus d'informationsQuantité requise : 1 |
