Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

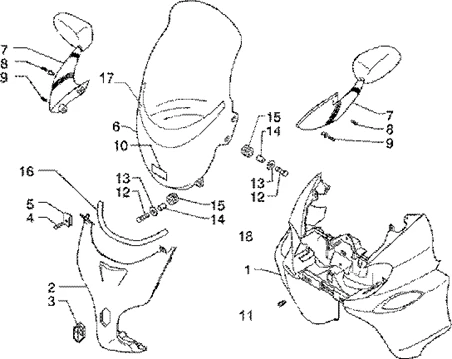

Châssis : T27 BOUCLIER-PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T27.PNG)
1 |
FACE AVANT ORIGINE PIAGGIO 125-250-500 X9 GRIS 686 -57556150A7- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
FACE AVANT X9 500 BLEU REALE 202/A |
||||||
|
1 |
FACE AVANT ORIGINE PIAGGIO 125-250-500 X9 NOIR 274 -57556150N3- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/0/2/img/80602.jpg)
2 |
PARTIE CENTRALE SUPERIEURE AVANT ORIGINE PIAGGIO 125-500 X9 GRIS PLATINE 686 -57556350A7 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
57556350D8 - PARTIE CENTRALE AV X9 BLEU REALE 202/A Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
PARTIE CENTRALE DE FACE AVANT ORIGINE PIAGGIO 125-250-500 X9 NOIR 274 -57556350N3- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/4/2/8/img/80428.jpg)
3 |
AUTOCOLLANT/STICKER/DECOR/ECUSSON PIAGGIO ORIGINE PIAGGIO COMMUN A LA GAMME (33MM ARGENT SOUPLE) -574771 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
VIS DE CARENAGE (3X18) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -258249 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/3/1/img/84631.jpg)
6 |
PARE-BRISE (MONTE ORIGINE) ORIGINE PIAGGIO 125-250-400 X8 2004>2006, X-EVO 2007> -622607 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/7/9/img/81579.jpg)
7 |
RETROVISEUR DROIT ORIGINE PIAGGIO 125-250 X9 1998>2005 1ER GENERATION -581500 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/8/0/img/81580.jpg)
7 |
RETROVISEUR GAUCHE ORIGINE PIAGGIO 125-250 X9 1998>2005 1ER GENERATION -581501 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
8 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -271891 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
9 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
574399000N - MONOGRAMME NOIR Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -271891 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
13 |
RONDELLE 6,2X20X1 ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -013092 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
14 |
ENTRETOISE (6X10X11.4) ORIGINE PIAGGIO COMMUN A LA GAMME -273288 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
15 |
PASSE-CABLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -576565 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/0/4/0/img/95040.jpg)
16 |
JOINT DE PARE BRISE ORIGINE PIAGGIO X9 -CM006001 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
Monogramme parabrise |
||||||
|
18 |
VIS CRUCIFORME (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -271891 Plus d'informationsQuantité requise : 2 |
