Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

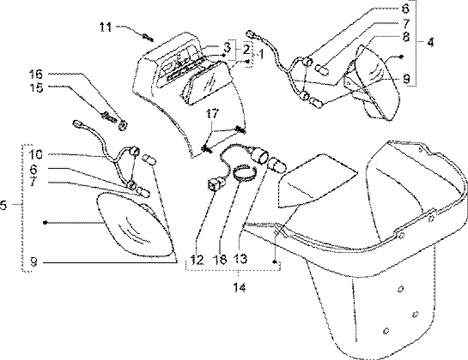

Connexions électriques : T45 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/3/6/img/85536.jpg)
1 |
FEU ARRIERE ORIGINE PIAGGIO X9 -638693 Plus d'informationsQuantité requise : 1 |
||||||
2 |
porte ampoule |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/8/img/67198.jpg)
3 |
AMPOULE 12V-2,3W ORIGINE PIAGGIO COMMUN A LA GAMME -581056- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/5/9/img/85559.jpg)
4 |
CLIGNOTANT ARRIERE DROIT ORIGINE PIAGGIO 125-250-500 X9 EVOLUTION 2005> -638727 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/6/0/img/85560.jpg)
5 |
CLIGNOTANT ARRIERE GAUCHE ORIGINE PIAGGIO 125-250-500 X9 EVOLUTION 2005> -638728 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
581648 - PORTE AMPOULE M23-M27 CLIGNOTANT Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
7 |
AMPOULE/LAMPE 12V 10W BA15S/R10 ORIGINE PIAGGIO COMMUN A LA GAMME -181746 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
581647 - GROUPE CABLES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/9/img/65799.jpg)
9 |
AMPOULE/LAMPE 12V 5W BA15S/R10 ORIGINE PIAGGIO COMMUN A LA GAMME -181747 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
FAISCEAU DE CABLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
581443 - FAISCEAU CABLES M23 FEU ARR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/6/1/img/85561.jpg)
14 |
FEU ECLAIRAGE PLAQUE DE POLICE ORIGINE PIAGGIO 125-250-500 X9 -63873200E8- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
15 |
VIS CRUCIFORME (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003108 Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
VIS CRUCIFORME (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003108 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
16 |
RONDELLE PLATE (6.4X13X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -013777 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
18 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 1 |
