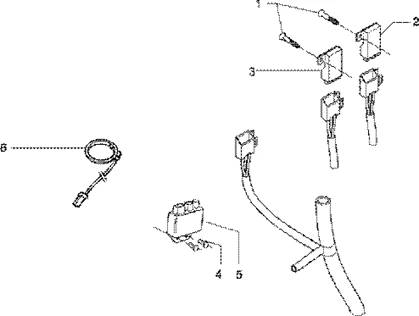

Connexions électriques : T49 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
1 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
2 |
RELAIS DEMARREUR 12V 30A ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -58246R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/8/8/img/81788.jpg)
3 |
RELAIS ECLAIRAGE (12V30A) ORIGINE PIAGGIO 125-250 MP3, X9 -582634 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
4 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
5 |
58054R - DISPOSITIF ELECTR.IMM. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/7/img/67237.jpg)
6 |
ANTENNE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER (AVANT 2012) -1D003415R Plus d'informationsQuantité requise : 1 |
