Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

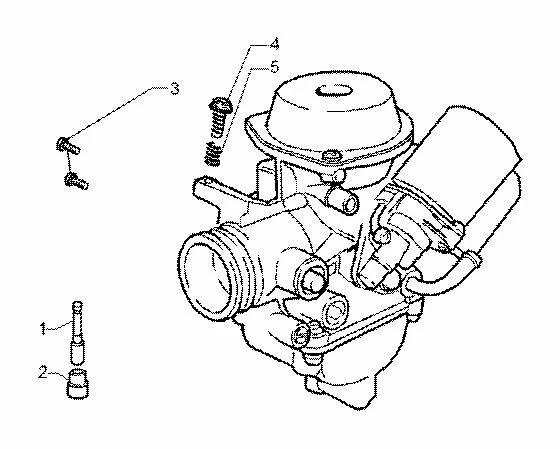

Moteur : T21 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T21.PNG)
Rechercher
1 |
CM109808 - CUVETTE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CM109808 - CUVETTE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
826826 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
826824 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
826825 - RESSORT Plus d'informationsQuantité requise : 1 |
