Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

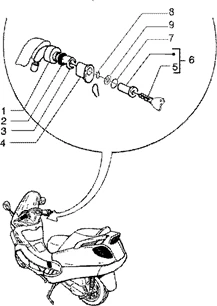

Connexions électriques : T51 COMMUTATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.jpg)
1 |
CONTACTEUR A CLE ORIGINE PIAGGIO 50 ZIP 1998>, NRG POWER 2005>, LIBERTY 1998>50-125 FLY 2005>, VESPA LX 2005>, /GILERA 50 RUNNER 2000>/APRILIA 50 SR MOTARD 2012> (COTE FAISCEAU) -1D002436 Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
CONTACTEUR A CLE ORIGINE PIAGGIO 50 ZIP 1998>, NRG POWER 2005>, LIBERTY 1998>50-125 FLY 2005>, VESPA LX 2005>, /GILERA 50 RUNNER 2000>/APRILIA 50 SR MOTARD 2012> (COTE FAISCEAU) -1D002436 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
2 |
RESSORT D'ARRET DE CONTACTEUR A CLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -253937 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/6/img/67166.jpg)
3 |
BLOC DE SERRURE ORIGINE PIAGGIO X7, X9, X10, BEVERLY, CARNABY/APRILIA SCARABEO -577816 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
4 |
CORPS DE SERRURE ORIGINE PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9 -1B002607 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/8/4/img/80684.jpg)
5 |
EBAUCHE DE CLE ORIGINE PIAGGIO 125 X8, X9, X7, X-EVO, BEVERLY, FLY, LIBERTY -575810 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/0/5/img/80905.jpg)
6 |
JEU DE CLES AVEC BARILLET ORIGINE PIAGGIO 125-250 X8 2004>2006, 125-250-500 X9 1998>, BEVERLY 1998>2005 -576552 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
7 |
JOINT DE SERRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298731 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
8 |
RESSORT D'ARRET SERRRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298838 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
9 |
RONDELLE DE BLOC DIRECTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -298594 Plus d'informationsQuantité requise : 1 |
