Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

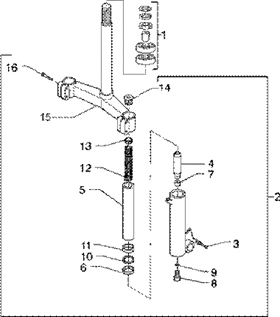

Suspensions-roues : T37 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/7/img/82357.jpg)
1 |
JEU DE DIRECTION (CAGE A ROULEAUX CONIQUE) ORIGINE PIAGGIO 125-250-500 X9, 125 X8 2004>/GILERA 500 NEXUS 2000> -5982615 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/0/0/img/79800.jpg)
2 |
FOURCHE ORIGINE PIAGGIO 125 X9, X8 2006< -56172R Plus d'informationsQuantité requise : 1 |
||||||
3 |
649619 - BOULON Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
497008 - CYLINDRE FOURCHE M23 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
497073 - CANON DE FOURCHE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/7/9/img/67479.jpg)
6 |
JOINT SPI (32X48X8) FOURCHE MODELE AVEC ABS ORIGINE PIAGGIO 125-250-300 X7, BEVERLY, CARNABY, 125-250 X8 2004>2006, X-EVO 2007>, X9/GILERA 125-250-300 NEXUS -601310 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
497011 - BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/8/img/67378.jpg)
9 |
JOINT/RONDELLE DE FOURCHE INFERIEUR KAYABA ORIGINE PIAGGIO COMMUN A LA GAMME -599270 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/5/img/66915.jpg)
10 |
CIRCLIPS MAINTIEN DE JOINT DE FOURCHE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -497132 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/8/img/67418.jpg)
11 |
PARE POUSSIERE POUR FOURCHE KAYABA ORIGINE PIAGGIO 125-250 X-EVO 2007>, X8 2004>2006, X7, X9, BEVERLY/GILERA 125-250 NEXUS -600269 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/4/5/img/82545.jpg)
12 |
RESSORT DE FOURCHE ORIGINE PIAGGIO 125-200 X8, X9 2005< -599420 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/8/img/66908.jpg)
13 |
JOINT TORIQUE DE FOURCHE (KAYABA) ORIGINE PIAGGIO X-EVO 125/250//400 -497017 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
497018 - BOULON FOURCHE Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
TE DE FOURCHE KAIABA ORIGINE PIAGGIO 125-250 X8, 125 X9 -601313- Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
649019 - VIS Plus d'informationsQuantité requise : 4 |
