Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

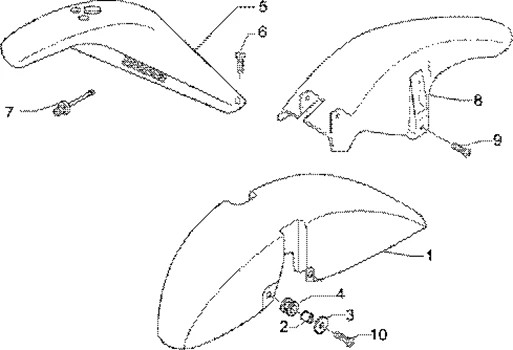

Châssis : T35 LOGEMENT ROUE-GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T35.PNG)
1 |
GARDE-BOUE X9 GRIS PLATINE 686 -59828900A7- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
GARDE-BOUE ORIGINE PIAGGIO X8, X9 BRUT A PEINDRE -598289- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/0/img/67360.jpg)
2 |
ENTRETOISE (6.1X8X10.5) ORIGINE PIAGGIO COMMUN A LA GAMME -598288 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
3 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
4 |
CAOUTCHOUC/SILENBLOC (8MM) ORIGINE PIAGGIO COMMUN A LA GAMME -217163 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
62358900E8 - GRILLE RADIATEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
CAPTEUR DE TEMPERATURE AMBIANTE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1D003720R- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
CAPTEUR DE TEMPERATURE AMBIANTE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1D003720R- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
621503 - GARDE-BOUE ARR INF. M23-125 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
9 |
VIS CARENAGE (M6) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -575249 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
10 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 4 |
