Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

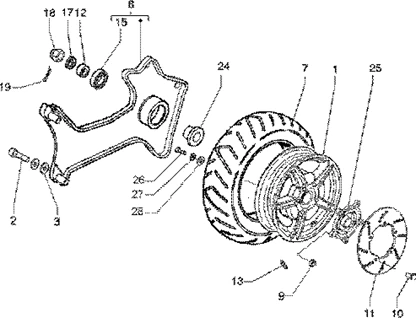

Suspensions-roues : T53 ROUE AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T53.PNG)
1 |
56375R - ROUE ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
2 |
VIS BTR (8X25) ETRIER OU AMORTISSEUR ORIGINE PIAGGIO COMMUN A LA GAMME -597150 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
PNEU 140/60-14 64P TL MICHELIN GOLD ST |
||||||
|
7 |
PNEU 140/60-14 PIRELLI |
||||||
|
8 |
828586 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
9 |
ECROU BRIDE AUTOBLOQUANT (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -59565 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
10 |
VIS BTR TETE BOMBEE (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -597564 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/8/img/67038.jpg)
11 |
DISQUE DE FREIN MAXISCOOTER ORIGINE PIAGGIO 400 X8 AV, X-EVO AV, 125-250 X9 AV+AR/GILERA 50 DNA AV, 125 DNA AV+AR, 125 RUNNER 2T AR -56392R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
12 |
ENTRETOISE (17X25X8.4) DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 CC -597528 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
13 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -597679 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
15 |
ROULEMENT (17X47X14) DE BRAS DE SUSPENSION ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -82545R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
17 |
ECROU (M16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -563728 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
18 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
19 |
GOUPILLE SECURITE ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -012789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
20 |
VIS BTR (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -149104 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
22 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
24 |
ENTRETOISE DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -848039 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/1/img/67001.jpg)
25 |
SUPPORT DISQUE DE FREIN ORIGINE PIAGGIO 125-250-500 X9, BEVERLY/APRILIA 250-300-500 SCARABEO/GILERA 500 NEXUS -56110R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/1/img/72731.jpg)
26 |
VIS BRIDE TH (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B016806 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/3/4/img/110034.jpg)
27 |
RONDELLE (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -246976 Plus d'informationsQuantité requise : 5 |
||||||
|
28 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 5 |
