Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

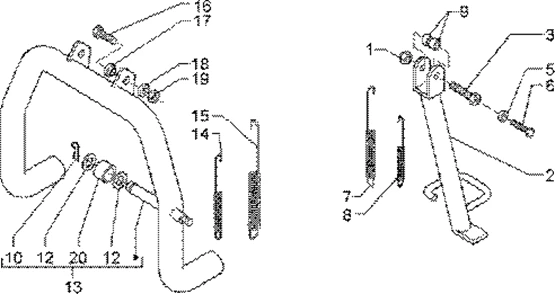

Châssis : T26 BEQUILLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
1 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 1 |
||||||
2 |
582625 - BEQUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
583155 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/6/img/146196.jpg)
4 |
TAMPON DE BEQUILLE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1C002702 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
RONDELLE PLATE (6X16) ORIGINE PIAGGIO COMMUN A LA LA GAMME -013880 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
6 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
7 |
RESSORT DE BEQUILLE LATERAL ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -295789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
8 |
RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -295788 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
9 |
JOINT TORIQUE BEQUILLE LATERALE ORIGINE PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -191189 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/8/7/img/81787.jpg)
11 |
CONTACTEUR/INTERRUPTEUR DE BEQUILLE ORIGINE PIAGGIO 125-250-500 BEVERLY, 125-500 X9 -582633 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
12 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
BEQUILLE ORIGINE PIAGGIO 125 X9 EVOLUTION 2006< -601061- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/1/0/img/80010.jpg)
14 |
564061 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/0/9/img/80009.jpg)
15 |
RESSORT DE BEQUIILE CENTRALE ORIGINE PIAGGIO X9 2005< -564060 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/2/img/65652.jpg)
16 |
VIS TH (10X35) ORIGINE PIAGGIO COMMUN A LA GAMME -031159 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/6/7/img/81567.jpg)
17 |
BAGUE/DOUILLE DE BEQUILLE CENTRALE ORIGINE PIAGGIO 125 X9 -581466 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
18 |
RONDELLE PLATE (10,4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -016626 Plus d'informationsQuantité requise : 4 |
||||||
|
19 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
582302 - SILENCBLOC Plus d'informationsQuantité requise : 1 |
