Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

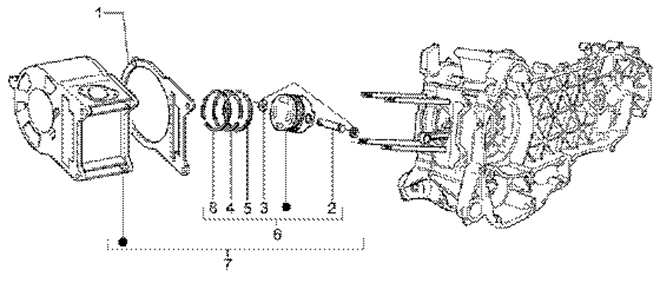

Moteur : T4 ENSEMBLE CYLINDRE-PISTON-AXE DE PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T4.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
1 |
JOINT EMBASE DE CYLINDRE (0,4MM) MAXISCOOTER ORIGINE PIAGGIO COMMUN A LA GAMME 125-250-300 -875112 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
1 |
JOINT EMBASE DE CYLINDRE (0,6MM) MAXISCOOTER ORIGINE PIAGGIO COMMUN A LA GAMME 125-250-300 -875113 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
1 |
JOINT EMBASE DE CYLINDRE (0,8MM) MAXISCOOTER ORIGINE PIAGGIO COMMUN A LA GAMME 125-250-300 -875114 Plus d'informationsQuantité requise : 1 |
||||||
2 |
AXE DE PISTON ORIGINE PIAGGIO 250 2009< COMMUN A LA GAMME -829529 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
3 |
CIRCLIPS DE PISTON ORIGINE PIAGGIO MOTEUR LEADER 125-250 -963486 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/8/img/66668.jpg)
4 |
SEGMENT INTERMEDIAIRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 250 CC -484908 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/4/img/66714.jpg)
5 |
SEGMENT RACLEUR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 250 CC -486363 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GROUPE PISTON |
||||||
|
6 |
GROUPE PISTON |
||||||
|
6 |
GROUPE PISTON |
||||||
|
6 |
GROUPE PISTOM |
||||||
|
7 |
CYLINDRE MAXISCOOTER ORIGINE PIAGGIO X8 200/ VESPA GT 200/ GILERA RUNNER 200/ APRILIA ATLANTIC 200, SPORT-CITY 200 -843291- Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
JEU DE 3 SEGMENTS (D 72X1) ORIGINE PIAGGIO 200 4T COMMUN A LA GAMME -843228 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/1/img/68921.jpg)
8 |
SEGMENT DE FEU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 250 CC -830486 Plus d'informationsQuantité requise : 1 |
