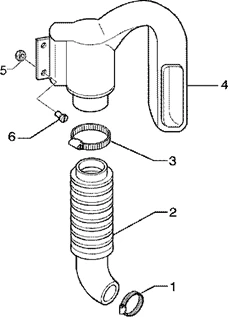

Moteur : T18 TUYAU DE REFROIDISSEMENT COURRIE-TUYAU D'ASPIRACION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
1 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 1 |
||||||
2 |
479707 - MANCHON AIR FX Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
576214 - TUBE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
5 |
ECROU (M6) ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50 CC -288245 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
6 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 1 |
