Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

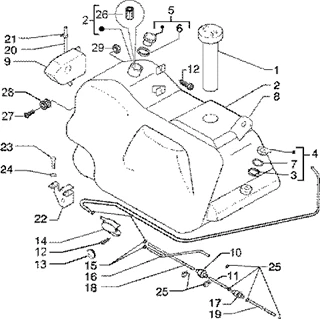

Châssis : T30 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/1/9/img/73019.jpg)
1 |
JAUGE A ESSENCE ORIGINE PIAGGIO 125-250 X9 1998>2005, 125X8 1998>2005 -CM086807- Plus d'informationsQuantité requise : 1 |
||||||
2 |
622370 - RESERVOIR X9 * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
3 |
COLLIER SERRAGE ROBINET D'ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -879888 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/2/img/149102.jpg)
4 |
RACCORD/ROBINET DE RESERVOIR ESSENCE ORIGINE PIAGGIO 125 X8, X9, X-EVO, MP3, BEVERLY -674593 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
5 |
BOUCHON ESSENCE ORIGINE PIAGGIO 50-125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, ZIP, TYPHOON, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY -259832 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
6 |
JOINT DE BOUCHON ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME -258160 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
7 |
JOINT DE ROBINET ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -196868 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
575873 - CUVETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
10 |
FILTRE A ESSENCE ORIGINE PIAGGIO 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4T 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
11 |
TUYAU/DURITE ESSENCE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME (ROULEAU DE 5M) -1R000160 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
12 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
12 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
13 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 180 MM ORIGINE PIAGGIO COMMUN A LA GAMME -145298 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
14 |
POMPE A ESSENCE ORIGINE PIAGGIO 50 FLY 4T 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
15 |
COLLIER DE SERRAGE DURITE (8X11) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002904 Plus d'informationsQuantité requise : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
16 |
DURITE/TUYAU ESSENCE (5X10X1060) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -CM001432 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/0/img/71230.jpg)
17 |
SOUPAPE DE RETENUE CIRCUIT ALIMENTATION ORIGINE PIAGGIO 125 MP3, X8, X-EVO, 125-250 BEVERLY, X9/GILERA 125 RUNNER 4T/APRILIA 125-250 ATLANTIC, 125 MOJITO, 1000 RSV-2 -AP8104594 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
TUYAU/DURITE ESSENCE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME (ROULEAU DE 5M) -1R000160 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
TUBE |
||||||
|
20 |
TUYAU/DURITE ESSENCE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME (ROULEAU DE 5M) -1R000160 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
21 |
COLLIER DE SERRAGE DURITE (5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002901 Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
576304 - ETRIER Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
620066 - ETRIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
23 |
VIS TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -031088 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
24 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
25 |
COLLIER POUR TUYAU DE 13MM ORIGINE PIAGGIO COMMUN A LA GAMME -CM002907 Plus d'informationsQuantité requise : 6 |
||||||
|
26 |
575304 - BAGUE RESERVOIR D'ESSENCE M27 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
27 |
VIS TH (6X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031091 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
28 |
TAMPON/SILENCBLOC DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1B000888 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
29 |
ECROU M6 ORIGINE PIAGGIO COMMUN A LA GAMME -195482 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/8/img/67078.jpg)
30 |
COLLIER ORIGINE PIAGGIO COMMUN A LA GAMME -564761 Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
CM017803 - RESSORT POUR TUBES Plus d'informationsQuantité requise : 1 |
