Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

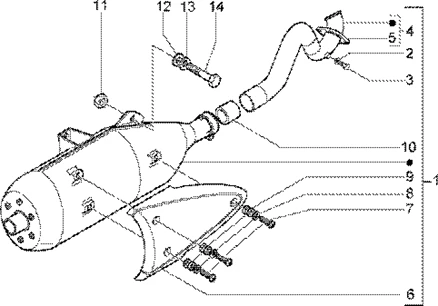

Châssis : T23 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T23.PNG)
1 |
8347055 - SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
2 |
JOINT OBTURATEUR ECHAPPEMENT COMMUN A L ENSEMBLE DE LA GAMME -016195 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
3 |
VIS/BOUCHON ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -433122 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/0/8/img/92908.jpg)
4 |
COUDE ECHAPPEMENT ORIGINE PIAGGIO 125 X9 -833949- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
826391 - BRIDE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/5/8/img/92758.jpg)
6 |
PROTECTION/TOLE DE POT ECHAPPEMENT ORIGINE PIAGGIO 125 X9, HEXAGON 2005< -827404- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
8 |
RONDELLE PLATE (5X16) TOLE ECHAPPEMENT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -827526 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
9 |
PASSE CABLE (8X10X16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -487665 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
10 |
JOINT GRAPHITE SILENCIEUX ORIGINE PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
11 |
ECROU ECHAPPEMENT SUR CULASSE MAXISCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC -436947 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
12 |
RONDELLE PLATE (8,2X20X2,5) ORIGINE PIAGGIO COMMUN A LA GAMME -013861 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
13 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 3 |
||||||
|
14 |
018555 - VIS Plus d'informationsQuantité requise : 3 |
