Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

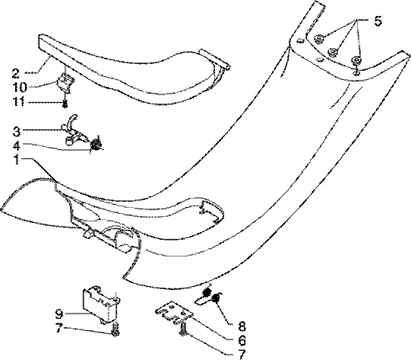

Châssis : T29 PARTIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/5/7/9/img/80579.jpg)
1 |
COUVERTURE CENTRALE ORIGINE PIAGGIO 125-250-500 X9 -575558000P Plus d'informationsQuantité requise : 1 |
||||||
2 |
575559000P - ABATTANT Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
575606 - PRISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/7/img/67117.jpg)
4 |
RESSORT DE RAPPEL ORIGINE PIAGGIO COMMUN A LA GAMME -575604 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
5 |
DOUILLE EN T (D5) MOLETEE CENTRAGE BOITE A AIR ORIGINE PIAGGIO COMMUN A LA GAMME -830056 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/8/img/67118.jpg)
6 |
PLAQUETTE CAPOT DE RESERVOIR ORIGINE PIAGGIO 125-250-300-400-500 BEVERLY, X9 2009< -575605 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
7 |
VIS DE CARENAGE (3,5X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -297498 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/0/1/9/img/84019.jpg)
8 |
RESSORT DE CAPOT ORIGINE PIAGGIO COMMUN A LA GAMME -621507 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
575847 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/1/1/img/72011.jpg)
10 |
EQUERRE DE TRAPPE A ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -AP8161182 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 4 |
