Eclatés de véhicule - PIAGGIO X9 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

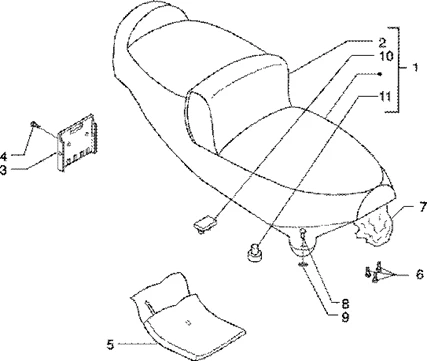

Châssis : T36 SELLE-TROUSSE D'OUTILIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/429/X9_200_1998-2005_T36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/9/img/80209.jpg)
1 |
SELLE ORIGINE PIAGGIO 125-250 X9 2003> -57329R- Plus d'informationsQuantité requise : 1 |
||||||
2 |
4949760042 - DOSSIER SIEGE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
3 |
MECANISME OUVERTURE DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -CM023704 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
4 |
VIS CRUCIFORME (D6) DE CARENAGE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -259348 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
651173 - TROUSSE OUTILS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
6 |
VIS CRUCIFORME (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -259830 Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
576061 - PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
252099 - RIVET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
9 |
RONDELLE PLATE (4.5X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016670 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
10 |
TAMPON SELLE ORIGINE PIAGGIO COMMIN A LA GAMME -296456 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
11 |
TAMPON DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -577492 Plus d'informationsQuantité requise : 2 |
